Air cooling belt

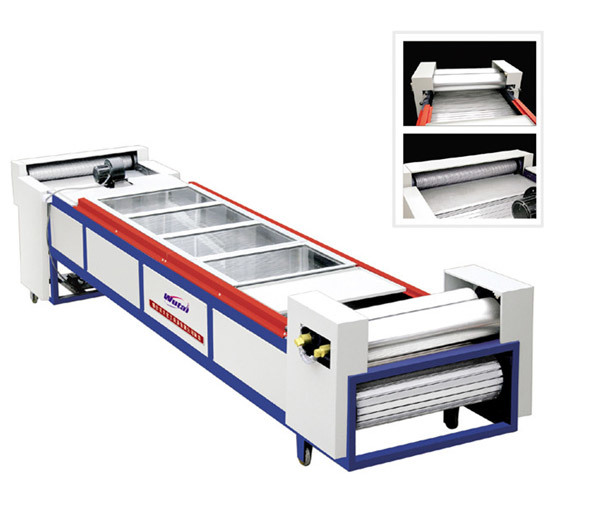

The cooler is consisted of cooling rolls , stainless steel segment conveyor , air blowers , crushers , frame and motors . The kneading material coming down from extruder are squeezed by the rolls into a long and wide sheet at thickness 1-1.5mm. The rolls are chilled by chilling water inside . The sheet is conveyed into the crusher while cooled by fans or chilled air blower continuously , in the end , the crusher breaks the sheet in to chips and chips fall down to the material container.
Features:
*Roll surface is carbon steel with special treatment
*Cooling by chilled water
*Double layer rolls , two emergency buttons
*Each to clean and maintenance
Specification:
Model |
Roll dia(mm) |
Width(mm) |
Length(mm) |
Output(kg/h) |
Motor power(kw) |
YPJ-408 |
191 |
800 |
4000 |
200 |
1.5 |
YPJ-508 |
191 |
800 |
5000 |
300 |
1.5 |
YPJ-509 |
290/191 |
900 |
5000 |
500 |
2.2 |
YPJ-612A |
290/191 |
1200 |
6000 |
700 |
2.2 |
YPJ-612B |
450/191 |
1200 |
6000 |
800 |
2.2 |
